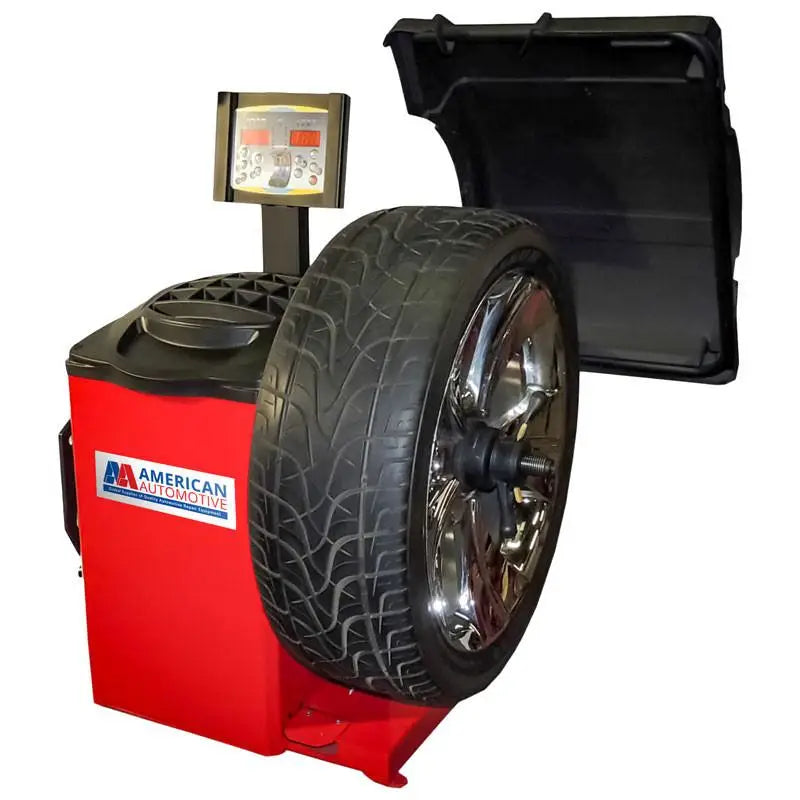

The TB-66 Wheel Balancer is a highly accurate & reliable wheel balancing system designed to accommodate large rims up to 28in in diameter and overall wheel diameters up to 44in. A 40mm Balancing Shaft provides incredible durability, while the exclusive Laser & Light feature illuminates the inside of the wheel at the unbalanced weight position, for convenient & precise wheel weight applications. The CB66-VE also comes standard with Multi-Mode Balancing options, along with Power Saving Mode, while allowing the user to choose between 5 Standard & 2 ALU Smart balancing configurations. A high-performance balancer at an unbeatable value!!
Limited One Year Warranty.
Features:
- User-Friendly Operation - LED, touch-panel Keypad with easy to read icons assisting operators utilizing all balancing functions.
- Large Rim Diameter Balancing - able to balance up to 28in Rim diameter & 44in overall Wheel Diameter.
- Multi-Mode Vehicle Balancing - standard with SUV, Car & Motorcycle balancing modes.
- Low-RPM Operation - at 140 RPM, the balancer’s life is further extended for sensitive electronics & moving components, all while providing highly accurate wheel balancing.
- Ease-Of-Use - with manual measurement input for distance & diameter with 5 ALU Standard modes and 2 ALU Smart modes.
- Exclusive Laser Indicator - lights up automatically at the unbalance weight position under ALUS mode in the 6 o’clock wheel position.
- Integrated Measurement Acquisition Wand - allows for ease of acquiring measurement data with a retractable, stylish measuring tool, integrated into the machine.
- Light Indicator - illuminates inside of wheel automatically at the unbalanced weight position, for improved wheel weight applications.
- Foot Pedal Braking System - conveniently secures the wheel in the unbalanced position to accurately apply balance wheel weights.
- Extra Long, Heavy Duty Balancing Shaft - the 12in long, 40mm diameter balancing shaft accommodates a wide range of wheels, including unique aftermarket wheels of different sizes & shapes.
- Speed-Nut Mounting - the Speed-Nut allows for quick & efficient wheel mounting, easily securing the wheel to the spindle with convenient lead-in screw.
- Multi Pocket Wheel Weight Shelf - 14 articulated pockets, over 1.5in deep, allowing plenty of storage for weights & tooling.
- Large Wheel Shroud - the large 38in wheel hood prevents debris from flying off the tire while in use.
- Power Saving Mode - automatically puts the machine in standby mode after 5 minutes of non-usage.
Specs:
Data Entry: Keypad
Max Wheel Diameter: 44in
Rim Width: 1.5in - 20in
Rim Diameter: 8in - 28in
Wheel Weight Capacity: 150 lbs.
Accuracy: 1 gram
Power: 110VAC / 60HZ
Balancing Time (Sec): 5 to 7secs
RPM: 140
Ship Weight: 352 lbs.

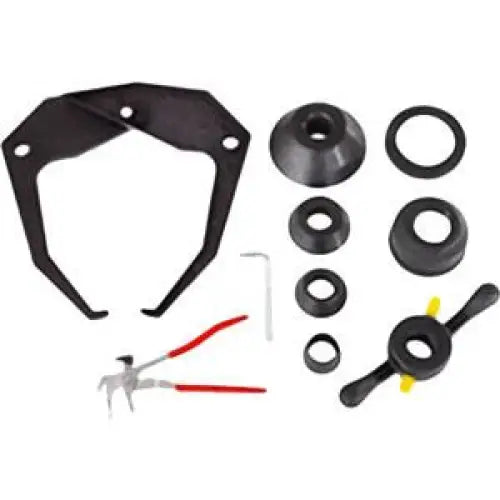

Includes:
50g Weight
Weight Hammer I Application Tool
Wheel Caliper
Clamp Bowl / Bowl Edge
Cone Sets - Small, Medium & Large sizes
Speed-Nut Assembly
